VLX 100 Bifold / Folding Door

VLX 100 Bifold / Folding Door in Hollywood, FL | Sightline Windows & Doors Hollywood

The VLX 100 Bifold / Folding Door is an accordion-style aluminum system that collapses entire walls into compact side stacks, dissolving the boundary between your interior and the patio, pool deck, or garden beyond. Homeowners across Hollywood, FL choose this configuration for the dramatic reveal it creates: one smooth pull, and your living room becomes part of the landscape. At Sightline Windows & Doors Hollywood, we are an authorized ViewLux installation partner, which means your project is backed by factory-trained expertise and a warranty that stays intact. Whether you are renovating a mid-century home in Hollywood Hills or designing new construction along the Intracoastal, we measure, specify, and install these systems to perform in South Florida’s demanding climate. Call (754) 714-7309 to schedule your free on-site consultation.

Call (754) 714-7309

Product Overview - VLX 100 Bifold / Folding Door

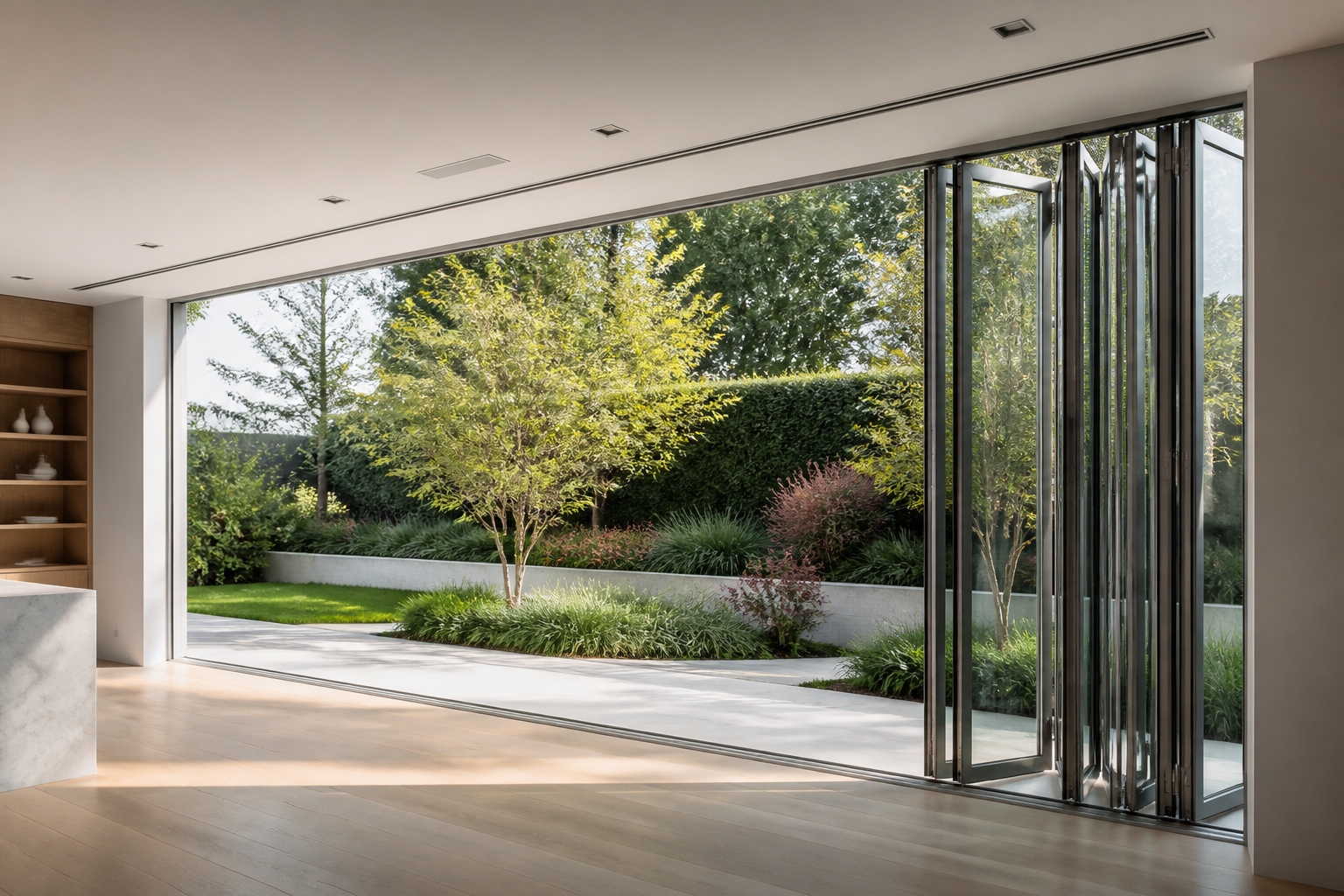

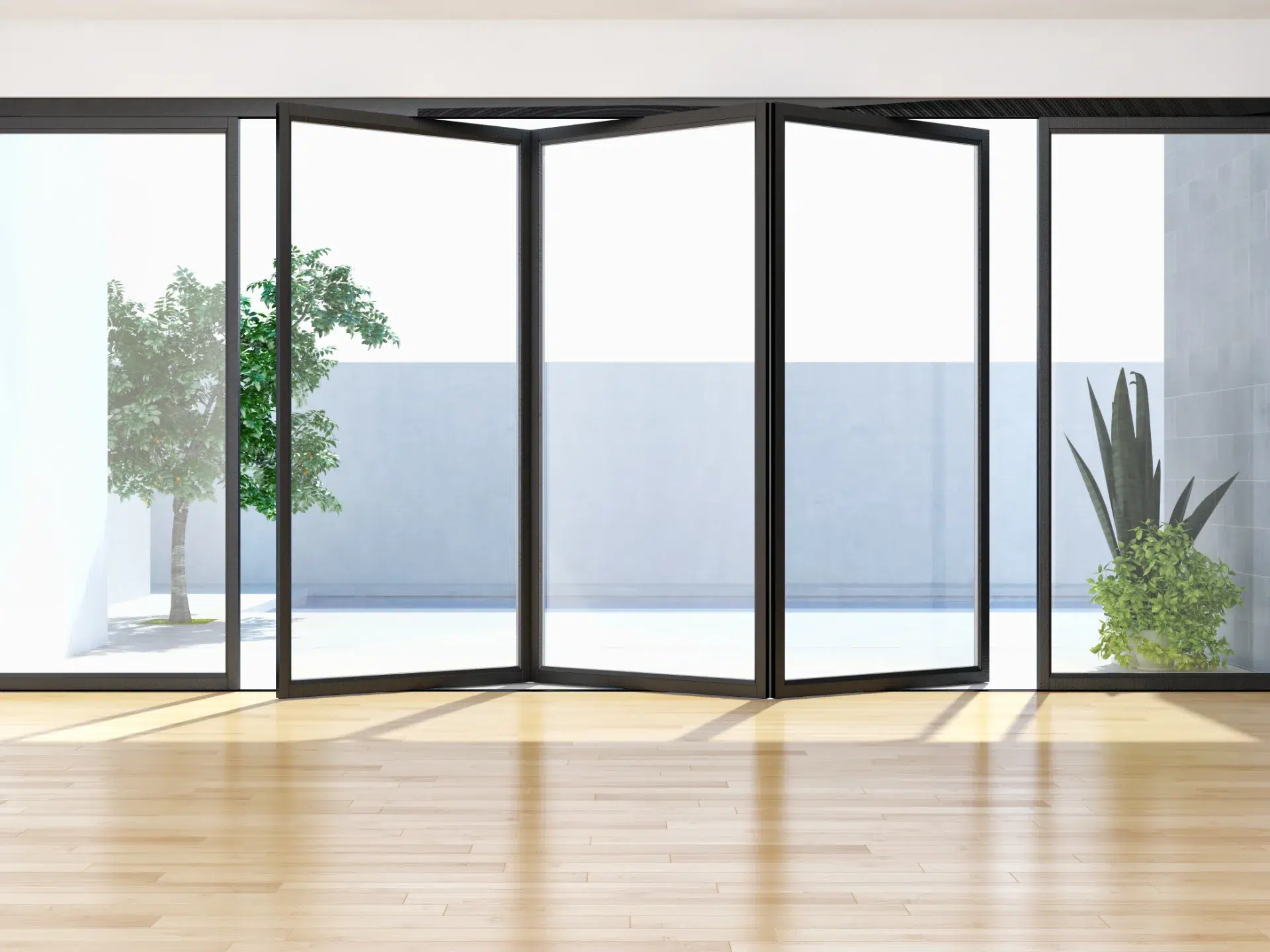

The VLX 100 was engineered around a single idea: the wall should disappear when you want it to. Unlike sliding doors that always leave half the opening fixed, this accordion-style aluminum bifold folds every panel to one side, opening up to 90 percent of the span for true wall-to-wall ventilation and sightlines. In Hollywood, where indoor-outdoor living is not a trend but a way of life, that matters.

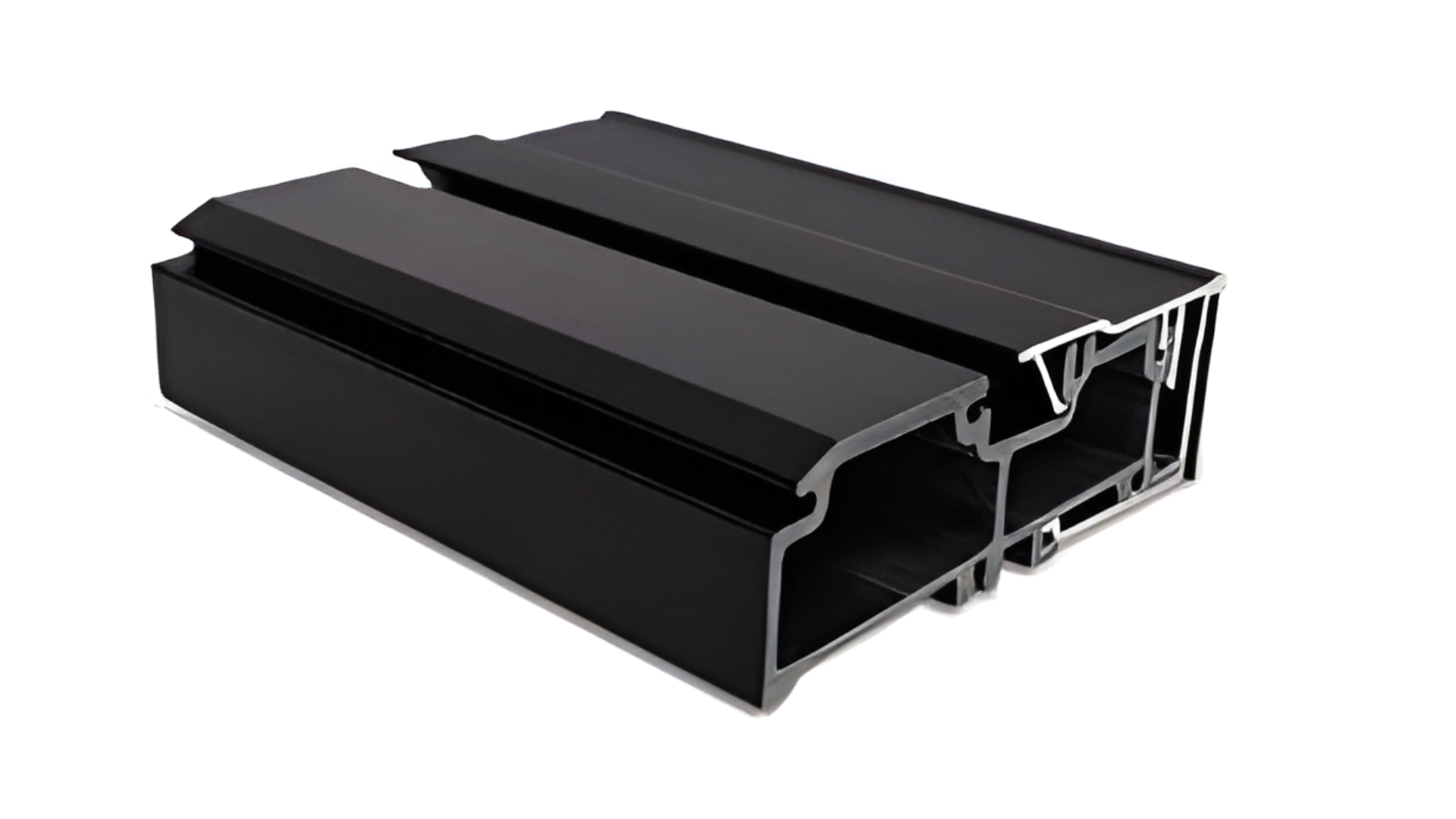

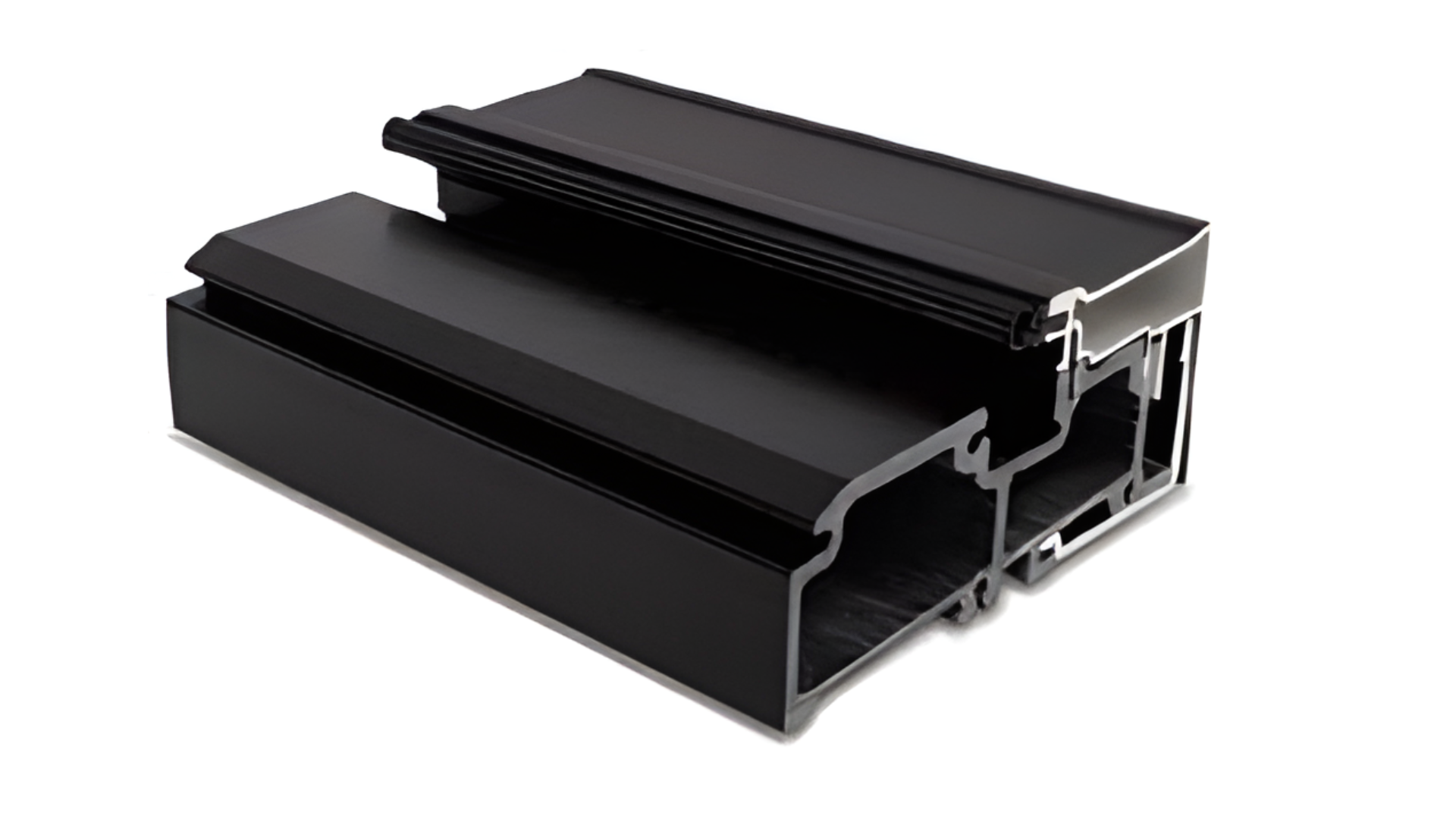

The frame is built from extruded aluminum with a 0.098″ wall thickness, substantial enough to resist flexing across wide openings without the bulk of older commercial systems. The 2.56″ profile width keeps sightlines slim and contemporary. Panels ride on a precision-machined track system that handles configurations from a modest 2-panel up to a 6-panel array spanning 20 feet. Hinges and rollers are stainless steel, hardware is concealed where possible, and the bottom track sits flush to minimize the trip hazard that plagues lesser systems.

Buyers in Hollywood, FL gravitate toward the VLX 100 for three reasons. First, the thermal break construction separates interior and exterior aluminum surfaces, so the frame does not turn into a radiator in July or a condenser in January. Second, the impact-resistant laminated glass option meets Miami-Dade and Broward County requirements without requiring aftermarket shutters or film. Third, the system is finished at the factory in colors that suit the local palette, from coastal whites to deep bronze that complements the terra-cotta roofs common in Hollywood Lakes.

Technical Specifications

Before

After

Performance Features

Thermal Efficiency

The VLX 100 incorporates a polyamide thermal break that interrupts heat transfer through the aluminum frame. NFRC-rated performance data is available for every glass and finish combination we quote, so you know exactly what to expect on your energy bill. In Hollywood, where air conditioning runs eight months a year, that thermal break pays for itself.

Acoustic Performance

Multiple sealing planes and the option for laminated glass reduce exterior noise transmission significantly. Homeowners near Hollywood Boulevard or the Florida Turnpike appreciate the difference when traffic rumble stays outside where it belongs.

Airtightness & Weather Seal

Brush seals and compression gaskets at every panel junction create a continuous air barrier. The system is tested to resist air infiltration under pressure differential, which means less dust, less pollen, and less humidity pushing through the frame during a summer storm.

Waterproofing

A sloped sill with integrated drainage channels directs wind-driven rain away from the track and out through weep holes. The AAMA 812 low-expansion foam sealant we apply at perimeter joints completes the water management system, preventing the leaks that destroy drywall and flooring.

Wind Resistance

The 0.098″ wall thickness and reinforced corner construction give the frame rigidity under load. With laminated glass specified, the assembly meets the wind-borne debris and pressure requirements for Hollywood’s location in the High-Velocity Hurricane Zone.

Security & Hardware

Multi-point locking engages at the top, bottom, and center of the operating panel. Stainless steel hinges and rollers resist corrosion in salt air. The hardware is finished to match the frame, so security does not come at the cost of aesthetics.

Color & Glass Options

The six factory finishes on the VLX 100 cover the full spectrum of Hollywood architecture. Premium Black and Anodized Silver suit the clean lines of contemporary homes going up near downtown. Pure White remains the default for coastal cottages and any facade where reflectivity helps manage heat gain. Bronze and Champagne warm up Mediterranean and Spanish Colonial revivals in neighborhoods like Hollywood Lakes. Teak Wood grain finish gives you the look of tropical hardwood without the maintenance burden of actual timber in a humid, termite-active climate.

Glass selection depends on orientation and use. Clear glass maximizes visible light transmission for north-facing walls. Low-E coatings reject infrared heat without darkening the view, ideal for west and south exposures that take direct afternoon sun. Tempered glass is standard for safety near pools and patios. Laminated glass provides impact resistance and an acoustic barrier. Gray Tint and Black Tint reduce glare and increase privacy for homes on smaller lots or with close neighbors, common in the older sections of Hollywood.

The Retractable Screen option stores in a slim housing when not in use and deploys across the full opening when you want ventilation without insects. In Hollywood, where no-see-ums can ruin an evening, that matters as much as the door itself.

Installation by Sightline Windows & Doors Hollywood in Hollywood

We have installed ViewLux systems in homes from Emerald Hills to Hollywood Beach, and the process we follow is the same every time because deviation is what voids warranties.

First, we conduct a pre-installation inspection of the rough opening. In Hollywood, that means checking for square, level, and plumb, but also assessing the structural header capacity. A 20-foot span of glass weighs considerably more than a standard patio door, and the supporting structure must be verified before the frame arrives.

We set the sill on a bed of sealant, shim the frame to perfect level, and anchor through the jamb into structural framing, not just trim or sheathing. The frame is checked for plumb in both directions before any fasteners are fully tightened. This is where amateur installation fails: a frame that is even slightly twisted will bind the panels, stress the hardware, and eventually leak.

Perimeter joints receive AAMA 812 low-expansion foam sealant, applied to the correct depth and width for the joint dimension. Backer rod is used where required to control the sealant profile. This is not generic caulk from a hardware store; it is a specification-grade system designed to accommodate the thermal movement that aluminum experiences between a 95-degree August afternoon and a 45-degree January morning in Hollywood.

Our installation practices comply with AAMA 2400 and 2410 standards, which govern the proper installation of fenestration products. After the panels are hung and adjusted, we cycle the door through its full range of motion, check every lock point for positive engagement, and perform a water spray test to verify that the drainage path is clear and the seals are engaged.

We protect the finished floor, remove all debris, and leave the site clean. The final step is a walkthrough with the homeowner to demonstrate operation, locking, and the care and cleaning procedures that keep the warranty valid.

Improper installation voids the manufacturer warranty. That is not a scare tactic; it is the condition printed in the ViewLux documentation. Our authorized-partner status exists precisely so that your investment retains its protection.

Frequently Asked Questions - VLX 100 Bifold / Folding Door

Get a Quote - VLX 100 Bifold / Folding Door in Hollywood

Ready to open your home to the backyard, the breeze, and the view? We will come to your property in Hollywood, measure your opening, review glass and finish options, and deliver a written line-item quote with no obligation. Every project starts with a conversation. Call (754) 714-7309 or contact Sightline Windows & Doors Hollywood today to schedule your free on-site measurement and estimate.

Written by the team at Sightline Windows & Doors Hollywood, authorized ViewLux installation partner serving Hollywood, FL.
